- Captures full kit in clean stereo sound
- Built-in effects and sound sources deliver flexible hybrid drum tones
- USB multitrack audio provides simple recording and streaming workflows
- Bluetooth connectivity offers wireless control via EAD Touch and Rec-n-Share apps
- Studio-grade preamp delivers clear mixes for live and recorded use

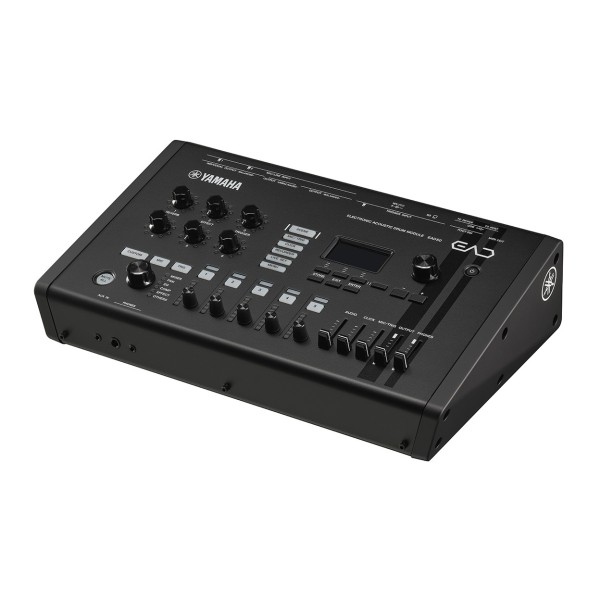

The Yamaha EAD50 Electronic Acoustic Drum Module & Sensor is designed for drummers wanting simple hybrid control on acoustic kits. By mounting the DSU50 sensor to your bass drum, you can capture the entire kit in balanced stereo using matched condenser microphones and an integrated trigger. This keeps setup time low while delivering a clear, punchy foundation that works equally well for practice, recording, and live use.
The EAD50 module processes this signal through a studio-grade preamp, onboard effects, and internal sound sources, letting you shape your sound in real time as you play, without adding extra mics or complex routing. USB audio, Bluetooth connectivity, and app support make it easy to record multitrack sessions, stream lessons, or create shareable content straight from your kit.
Capture your whole kit with one sensor
The DSU50 sensor combines two matched condenser microphones with a precision kick trigger, mounted directly to the bass drum. This single-point capture delivers clear stereo imaging and defined low-end response, so your toms, cymbals, and kick stay balanced without extra microphones. It’s a practical solution for drummers who want consistent results every time they set up, whether at home, in rehearsal spaces, or on stage
Shape your sound as you play
The EAD50 module gives you real-time control over effects, levels, and sound sources while you’re playing. A studio-grade preamp and digital engine refine the incoming signal into a focused mix that sits comfortably in PA systems and recordings. LED rotary faders and dedicated controls keep adjustments quick and intuitive, so you can react to the room without breaking your flow.
Built for recording, streaming, and practice
USB audio with multitrack support lets you record individual channels straight into your computer, making the EAD50 well suited to studio sessions and lesson capture. Bluetooth audio and MIDI open up wireless control through Yamaha’s EAD Touch and Rec’n’Share apps, helping you create practice videos, online lessons, or social content with minimal extra gear.
Reduce setup without losing flexibility
By combining microphones, triggers, effects, mixer functions, and sound generation in one unit, the EAD50 keeps your rig compact and reliable. Multiple mic and trigger inputs allow for expansion when needed, while balanced outputs and headphone connections cover monitoring and live sound needs. It’s a tidy, dependable way to bring electronic options to an acoustic drum kit.
Specifications
- Product Name: Yamaha EAD50 Electronic Acoustic Drum Module & DSU50 Sensor
- Product Code: EAD50
EAD50 Module
- Item Code: EAD50 //E
- GMC: VHF2920
- EAN: 4957812711609
- Length (In Mm): 476
- Width (In Mm): 330
- Height (In Mm): 292
- Tariff Code: 85437090990
- Weight Gross (Kg): 7.8
- Weight Net (Kg): 5.99
- Sales Start: March 2026
DSU50 Sensor Unit
- Item Code: DSU50 //YT
- GMC: VHF9200
- EAN: 4957812711692
- Length (In Mm): 231
- Width (In Mm): 155
- Height (In Mm): 135
- Tariff Code: 85181000900
- Weight Gross (Kg): 1.1
- Weight Net (Kg): 0.66
- Sales Start: March 2026
EAD50 Technical Specifications
- Sound Engine: SWX100
- Polyphony: 512
- Effects: Improved From EAD10
- ROM Size: 2GB
- Modifiers: 6 – Rev/FX/Trig/Assign x3
- LED Rotary Faders: 5
- Volume Knob / Faders: 5 (Audio/Click/Drum/Output/Phones)
Connectivity
- Headphone: 2 – 1/4″ And 1/8″
- Main Out: 2 (L/Mono, R), 2 (XLR Balanced)
- Individual Out: 8 (1/4″ Balanced)
- Mic In: 5 Mono Combi
- Trigger In: 5 Dual Zone / Triple Zone
- Aux In: 2 (1/8″ Flexible Routing)
- Foot Switch: 2
- USB: To Host / To Device (A/C) High Speed, MIDI Host
- Other Ports: MIDI Out, SD Card, Bluetooth (Audio/MIDI)
USB Audio
- Channels: 8 In / 10 Out
Software & Apps
- Cubase AI Download: Yes
- Compatible Apps: Rec’n’Share / EAD Touch Apps
- Other Functions: Looper, Sampling, Contents Pack
DSU50 Sensor Specifications
- Mic: Improved Stereo Mic
- Jack: 1x Jack (5 Pin XLR)
- Trigger: 1x 1/4″
- Body: Perforated Metal Chassis
- Mounting: Acoustic Bass Drum Plus Options
- Extras: 1x XLR 5P-3P S
